RPR EN4165-Style Connector with PCB Contacts
Cannon's RPR modular rectangular solution is comprised of shells, plates, inserts and a proprietary latching mechanism that are integrated in a lightweight, space saving design. It is an ARINC 809-compatible interconnect that enables high-speed data transfer, signal integrity and secure connectivity in commerical aerospace IFE/C & avionics applications. A front release, rear removable insert and proprietary latching mechanism make service, repair and maintenance easier. It uses various sizes of PCB contacts in both straight and right angle configurations, and offers additional accessories for Line Replaceable Unit (LRU) applications.
Features
- Precision PCB tail alignment
- Front release rear removable insert with proprietary, Cannon-designed latching mechanism
- Compact and lightweight with composite construction that is ideal for ultimate weight savings
- Houses a monoblock insulator and press-fit contacts to create a cost-effective solution for PCB applications and panel mounts
- Intermateable with other EN4165 plugs from current suppliers
RPR EN4165-Style Connector with PCB Contacts
Searching for part specs, 2D drawings, 3D models (when available) or available stock?
Resources
Rack and Panel Catalog
RPR EN4165-Style Connector with PCB Contacts
BKA ARINC 600 with Stamped PCB Contacts Sell Sheet
ARINC-801 Fiber-Optics Sell-Sheet
BKA ARINC 600 Rack & Panel Sell Sheet

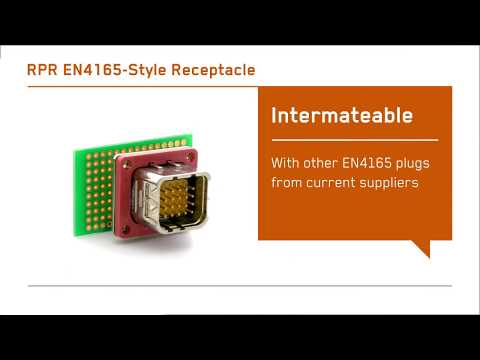

RPR Modular Solution Connector Video
Modular, EN4165-style rectangular interconnect comprised of shells, plates and inserts packaged in a lightweight, space saving design, enables high speed data, signal integrity and secure connectivity.
Product Specification
Environmental
| Sealing | Unsealed or Environmental |
| Operation Temperature | -55°C to + 175°C |
Mechanical
| Shape | Rectangular |
| Shell Style | Receptacle |
| Durability | 500 Mating Cycles |
| Power & Signal In Same Layout | Yes |
| Contact Style / Termination | Straight and Right angle PCB Contacts |
Material
| Shell | Composite |
| Shell Plating | Electroless Nickel |
| Insulator | Thermoplastic |
| Contact | Copper Alloy |
| Contact Plating | Gold over Nickel |
Electrical
| Operating Voltage | Up to 500V |
| Current Rating | Up to 40 Amps |
| Contacts (MIN/MAX) | Up to 20 Signal Contacts |
| Gauge Wire Size | 26 to 8 GA² |
| Number of Signal | Up to 20 Signal Contacts |
